Go from sign-up to an agent that completes its first checkout, in about 15 minutes.
Set up your vault, connect an agent, and run a practice checkout where the agent
handles only tokens and your card is never typed. It takes about 15 minutes.You need a payment card and an MCP-capable agent, such as one of the
supported agents. If you write your own agent in TypeScript,
follow Install the SDK for the connect step instead.
The whole quickstart, from adding a card to reading the activity log.
Free accounts include 5 payments per rolling 30 days. A payment counts once
the proxy types your card number into a page, so a fill refused before that costs
nothing. A fill that fails after the number reached the page can still count. The
practice checkout below fills a test card, so it never counts. See
Billing.
Open https://app.agentvault.io and sign in with your
email address. Your account is created on first sign-in.
2
Add your card
In the sidebar, under Vault, click Cards, then Add card.

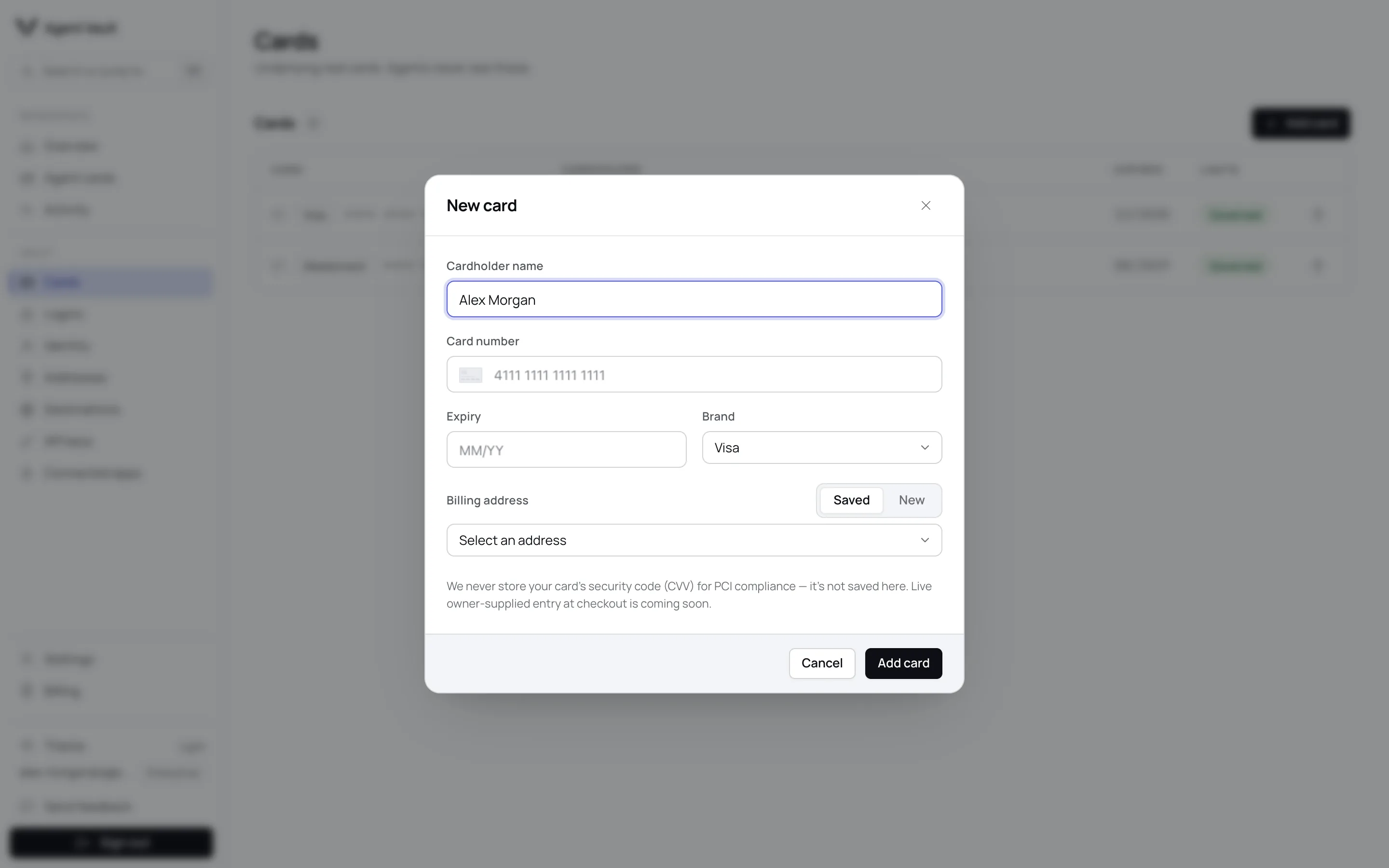

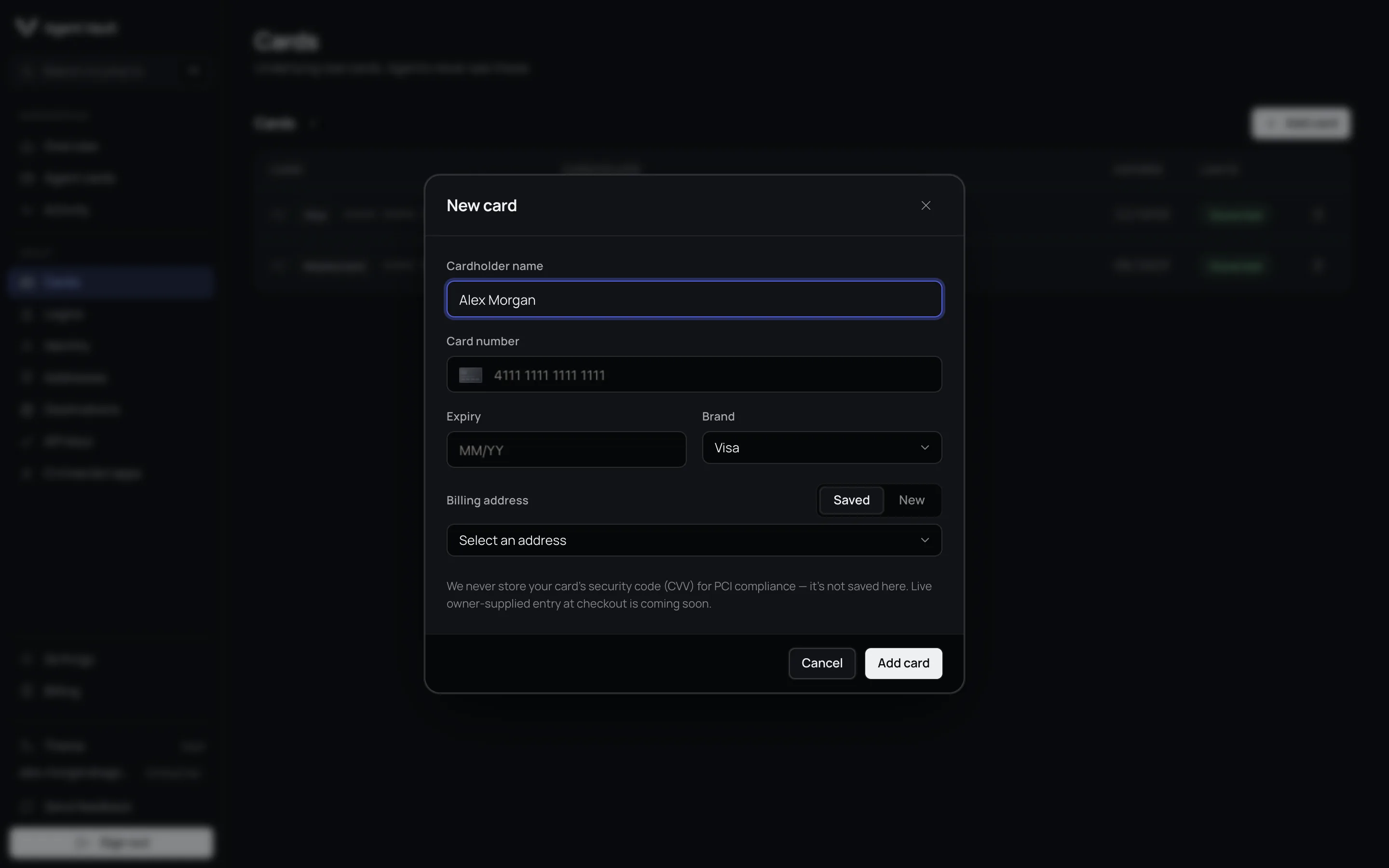

The card number field is served by the vault provider, not by Agent Vault.
The number field is a secure frame from our card vault, so your number never
reaches the Agent Vault backend. The security code (CVV) is never stored. See CVV policy.
3
Add a shipping address
Under Vault, click Addresses and add an address labelled ship. The
billing address from your card is already saved here as card1 or similar.
Rename it before your agent first reads its tokens: renaming later replaces them.
Your agent cannot see which address belongs to which card, so tell it the label
of your card’s billing address.
4
Add your identity
Under Vault, click Identity and enter your name, email and phone number. Almost every
checkout asks for all three.
5
Check your starter agent card
Under Workspace, click Agent cards. Adding your first card created
Default agent card, a set of spending rules on top of your card:
Limit
Starter value
Per transaction
$75
Per week
$200
Per rolling 30 days
$500
Per day
$100 (Plus and Enterprise only)
These are fine for a first run. Change them later on Agent cards.
Your vault is ready, and your first card has limits before any agent touches it.
Only your first card gets limits automatically. A card you add later shows No
limits: click Add limits on it before an agent uses it.
The steps below set up the local MCP server, which uses an API key.
1
Create a test card key
Under Vault, click API keys, then New key. Name it practice.
Leave the other defaults, but under Verification tick Fill a test card
instead of my card. Then click Create key.With that box ticked, the proxy types a public Visa test card and test security
code wherever your agent fills your card tokens. Your real card is never typed.
Test-card fills count against no limit and raise no card, limit or pause alert.
The first-connection alert and new-site approval still apply. See
Fill a test card instead.
Never run the practice checkout with a key that fills your real card. The
practice page is not a payment page, and on preview and development deployments
it keeps what it receives.

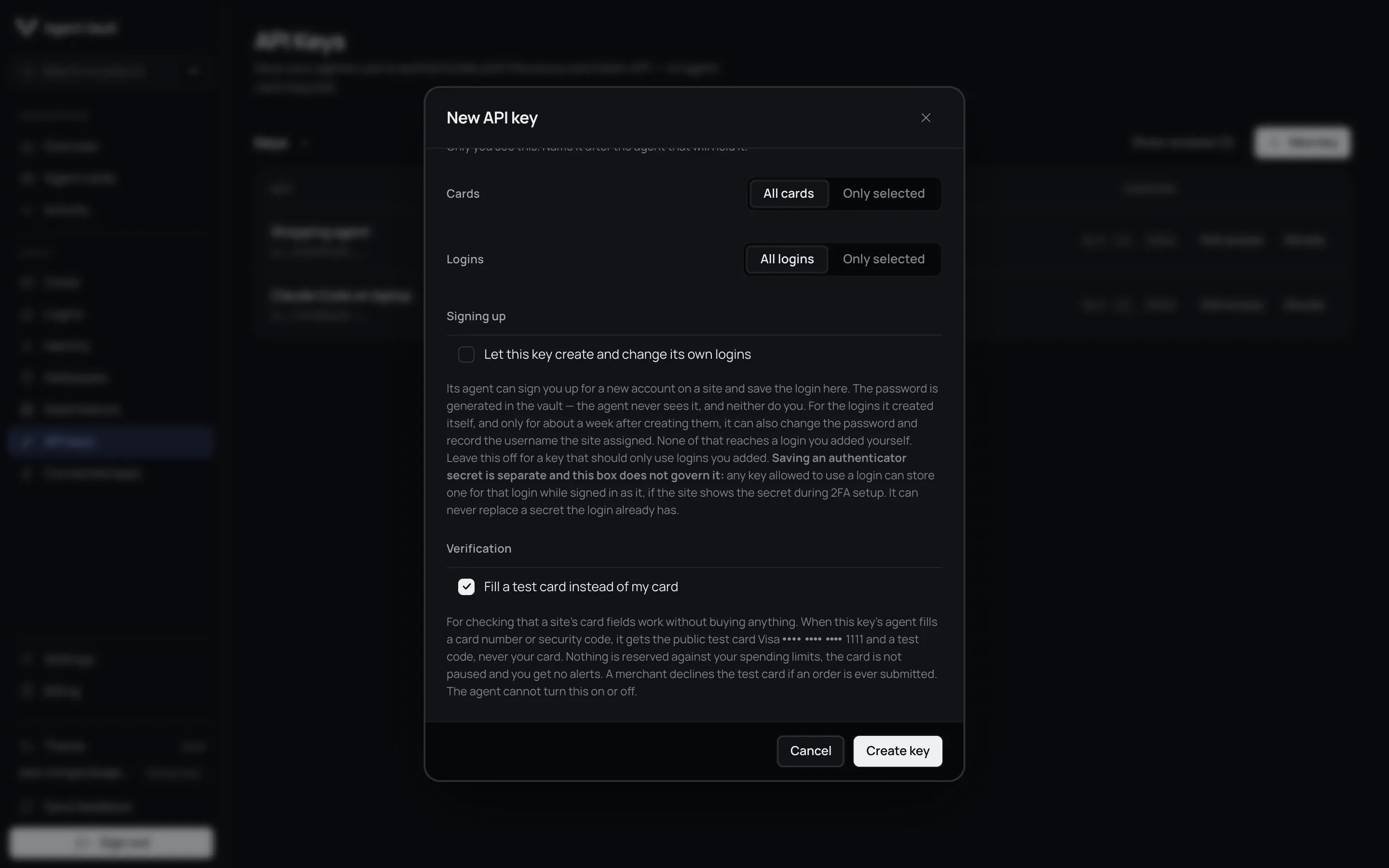

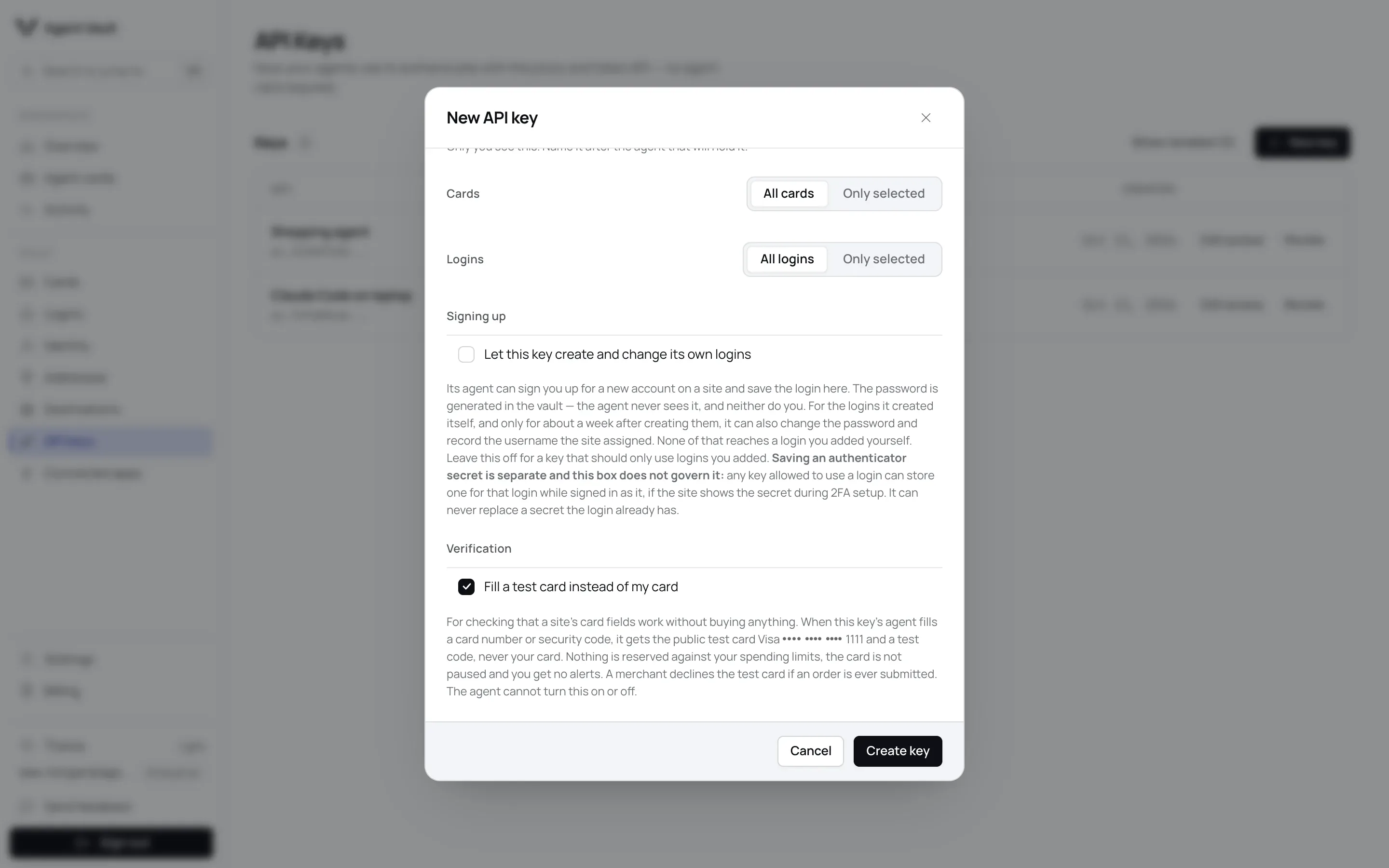

Creating an API key.
2
Copy the key
The key starts with av_ and is shown only once. Store it like a password.
3
Copy your agent's setup
Go to Overview. Under Your agent framework, pick your agent, then click
Copy agent instructions. The block has your deployment’s addresses, and your
key if you created it in this browser session. Otherwise, paste your key over
the placeholder.

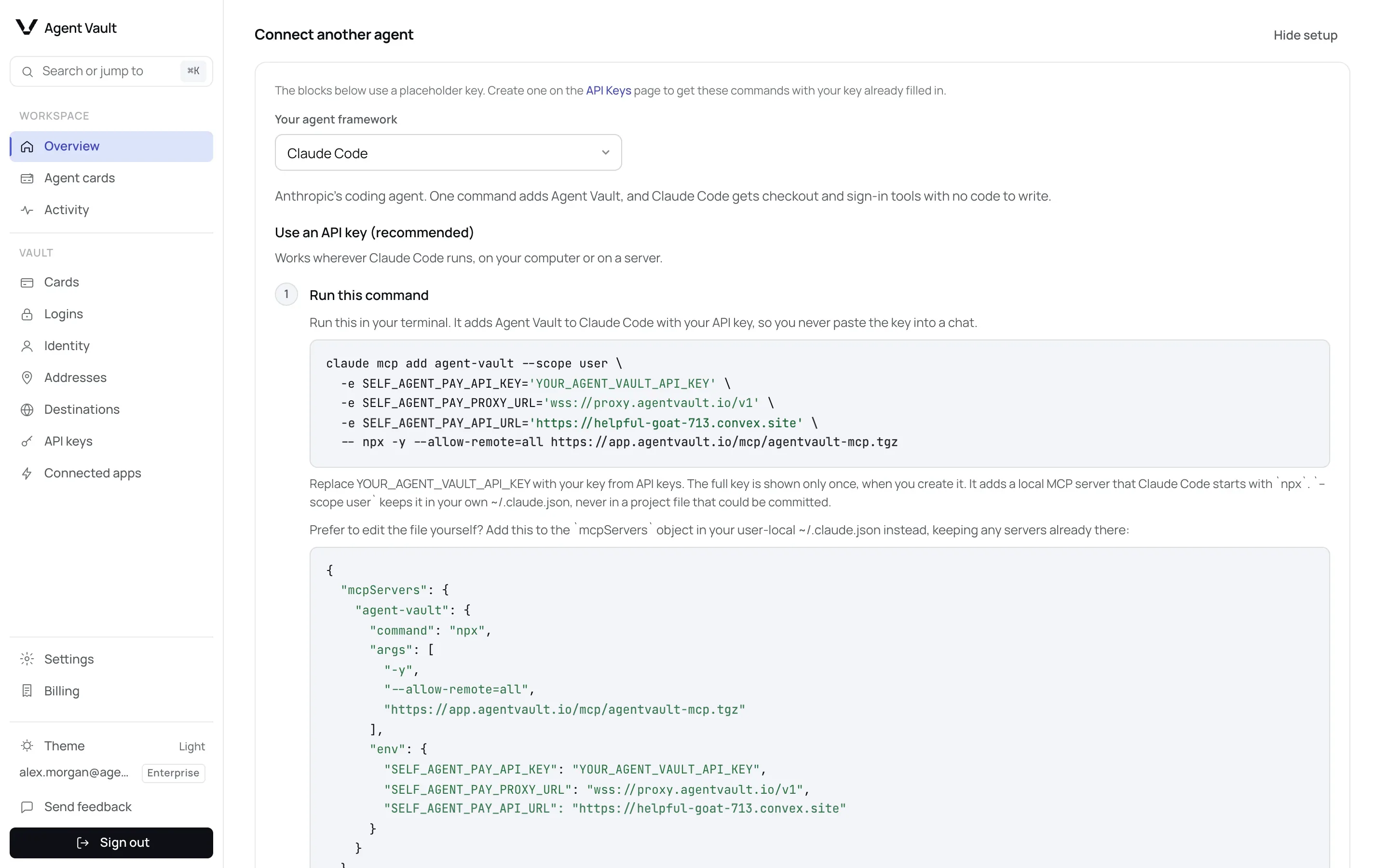

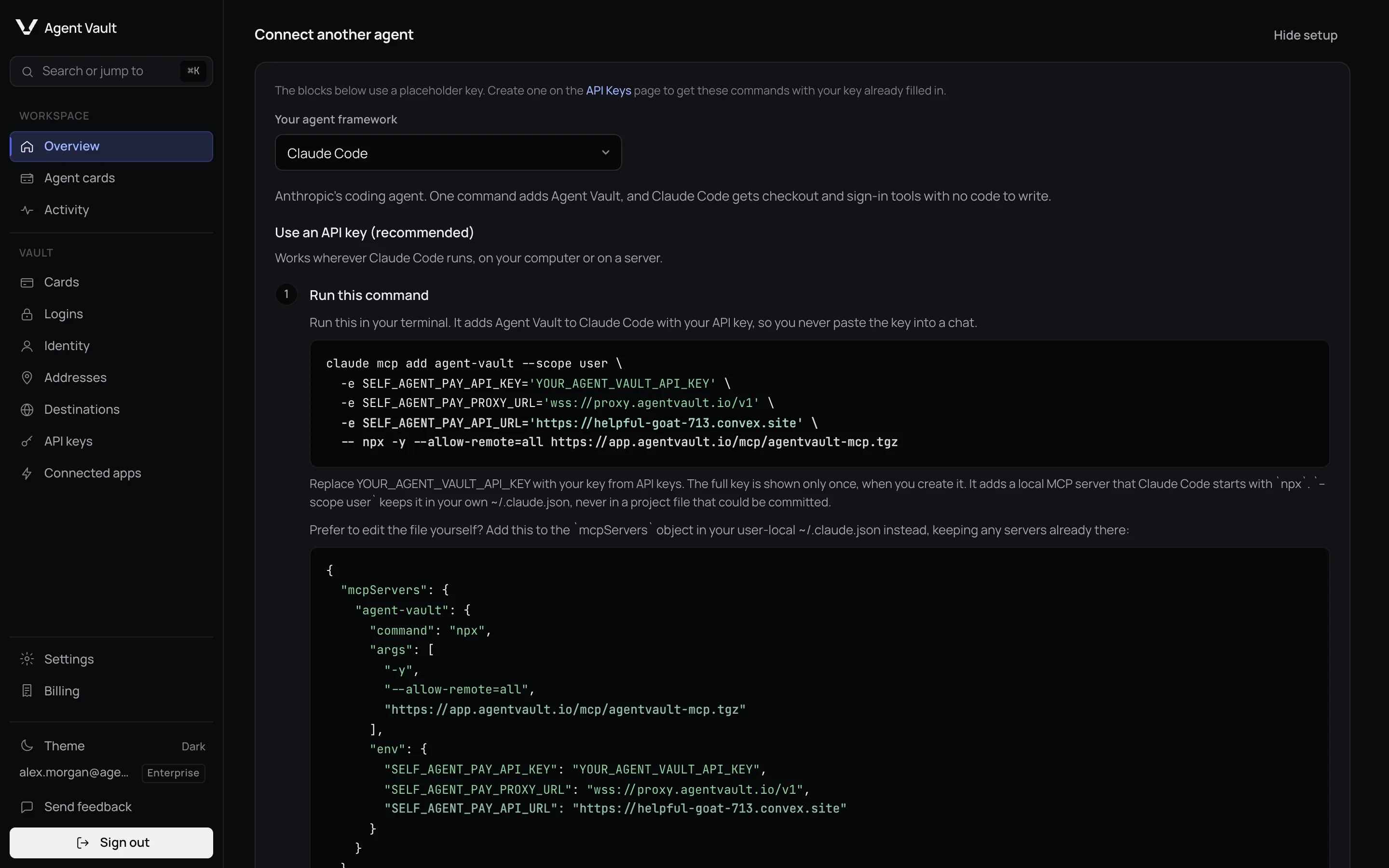

The Overview page generates your agent's setup for you.
For an MCP client, the server entry looks like this:
npm 12 refuses to fetch a package from a URL unless --allow-remote=all comes before the URL, so the args include it. npm 11 accepts it with an “Unknown cli config” warning.
On a self-hosted Agent Vault, copy the block from your dashboard instead: it
fills in your deployment’s addresses.
4
Paste it into your agent's configuration
Use your user-level configuration, not a project file you commit, because the
block contains your live key. Per-client paths are on MCP setup.
5
Restart your agent
Your MCP client loads the Agent Vault server on start.
6
Ask your agent to call get_token_catalog
It returns your tokens with the card brand and last four digits. It contains no
card number, security code or password. It does not count as a payment.An invalid_api_key error means the key is wrong or revoked. Other connection
failures are on Troubleshooting.
Your agent is connected. It can see your vault as tokens, and nothing more.
The practice checkout is at
https://app.agentvault.io/demo-checkout.
It shows a $20.00 order and charges nothing. Connect with the practice key, or
a hosted connection with Fill a test card instead of my card ticked. Ask your
agent:
The agent fills your name, address and card with tokens, submits, and checks
the result with get_session_outcome. The card fill reply should carry a
card_fields_verified note, confirming the test card went in instead of yours.
If it does not, stop. Check that the key’s Access column on API keys reads
Test card only, or that the connection’s row on Connected apps shows
Test card.
The practice checkout receives your real name and address. On the production
service it keeps nothing. On a preview or development deployment it keeps:
The latest submission, in memory.
For a run tagged for automated testing, a card-free summary with your name
and address, for about a day.
Your name, street and the card’s last four digits in the web server’s log.
None of this is linked to your account, so deleting your account does not
remove it. See
The practice checkout.
2
Approve the new site when your dashboard asks
The first fill on a site you have not approved pauses, and a banner reads A
new site is waiting for your approval. Click Approve within about 15
minutes, or the fill is refused. See Destinations.
3
Review the session
Under Workspace, click Activity. Open the session to see the site, the
kinds of fields filled, any refusals, and the outcome. Recording is best effort,
so an event that failed to save is missing, not retried.

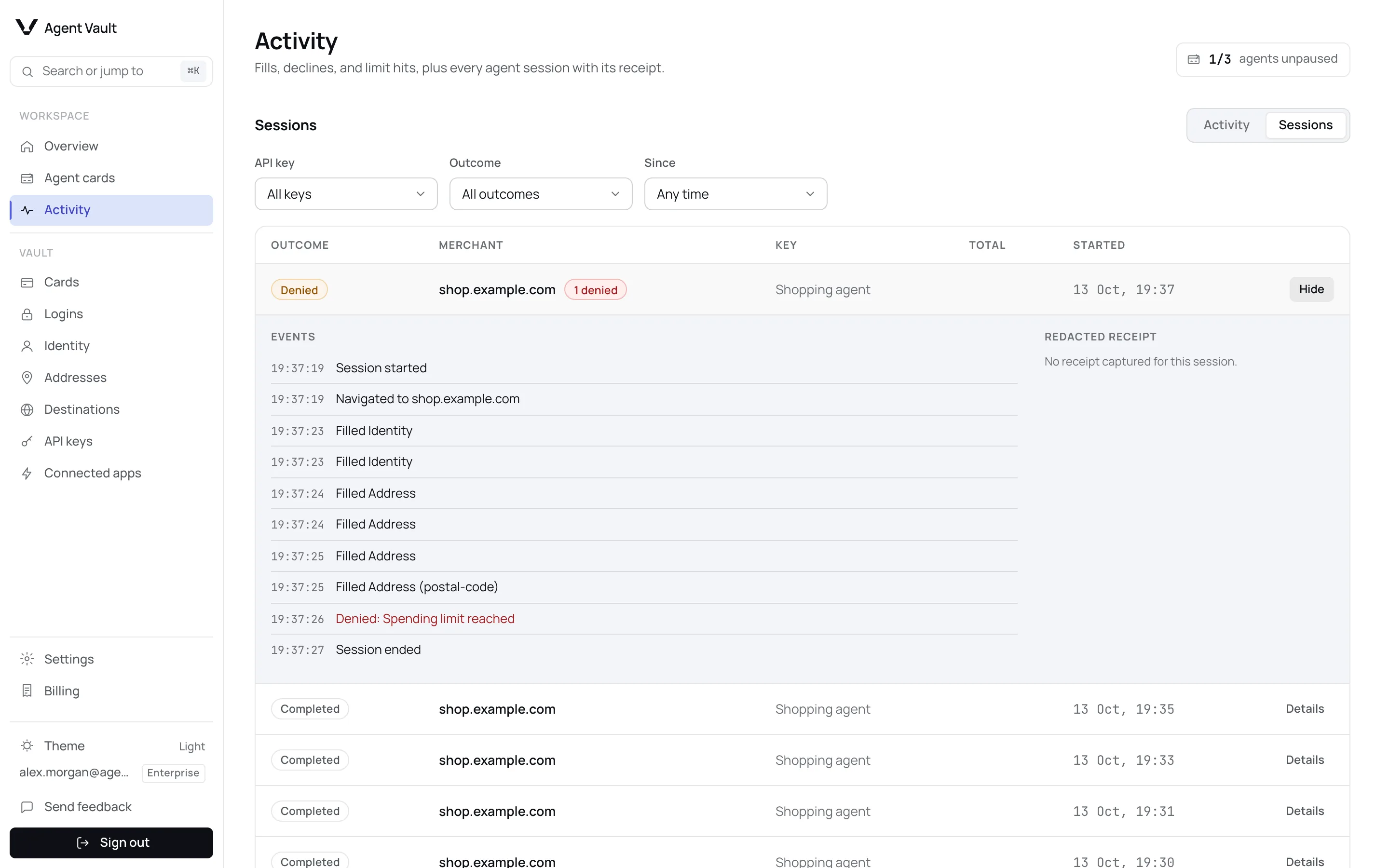

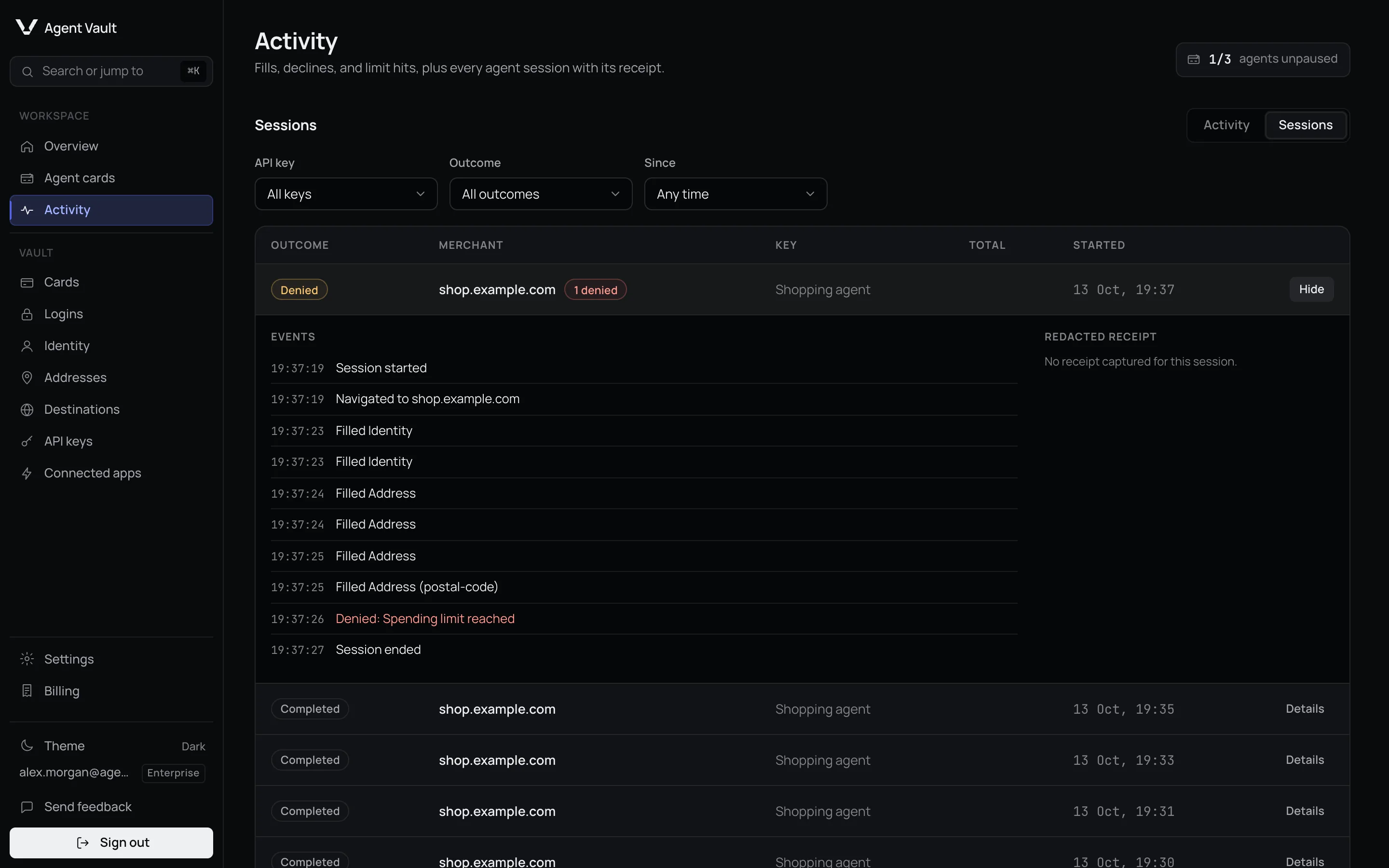

Each session expands into the events that happened during it, refusals included.
Your agent completed a checkout, and the only card data it ever held was a token.
Before a real purchase, use a key without Fill a test card instead of my
card. On the hosted MCP server, click Change access on the connection’s row
on Connected apps and clear that box. Then start a new session: an open one
keeps filling the test card. New fills type your real card and count against
your limits.
